Bell 412 RC Helicopter Beginner's Guide: Complete Setup and First Flight Tutorial

Welcome to Your Bell 412 Journey

Congratulations on choosing the Flywing Bell 412 RC helicopter! Whether you're new to RC helicopters or transitioning from smaller models, this comprehensive guide will walk you through everything you need to know to get your Bell 412 in the air safely and confidently.

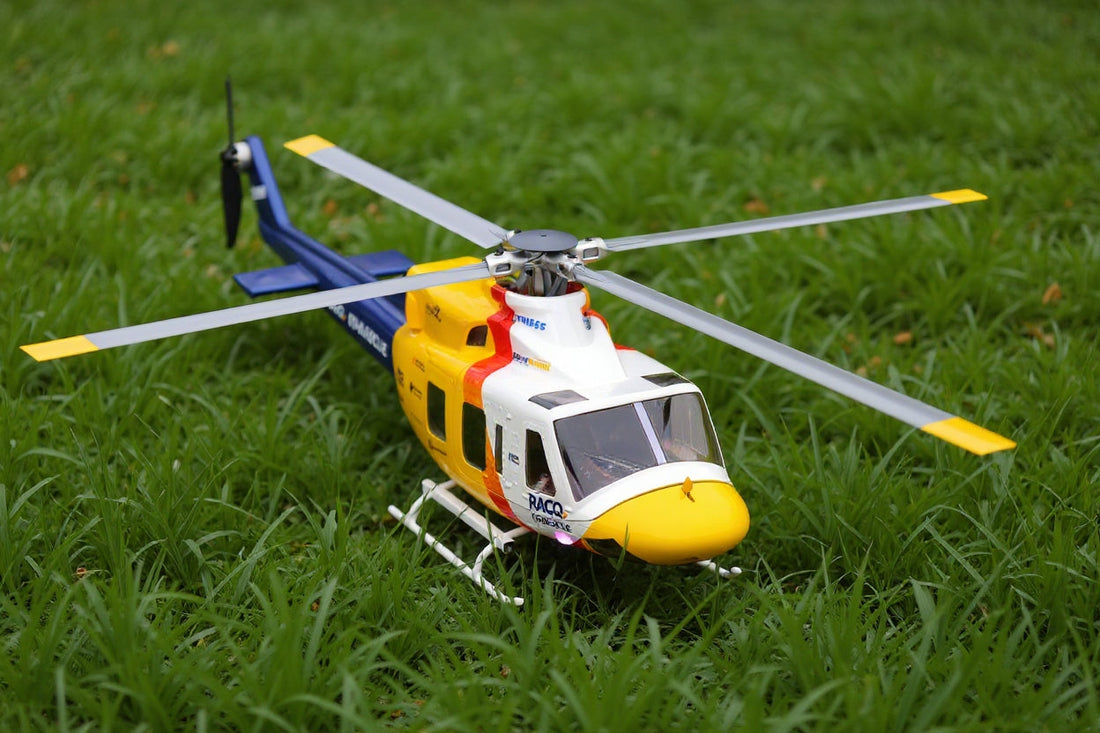

The Bell 412 is a 470L size scale helicopter with GPS stabilization, making it one of the most beginner-friendly large-scale helicopters available. By following this step-by-step guide, you'll be hovering like a pro in no time.

[Image suggestion: Unboxed Bell 412 with all components laid out neatly]

What You'll Need Before You Start

Essential Equipment Checklist

Before assembling your Bell 412 RC helicopter, make sure you have:

Included with Your Bell 412:

• Bell 412 scale fuselage (470L size)
• Main rotor blades and tail rotor
• GPS flight controller (ACE system)
• Brushless motor and ESC
• Servo set (cyclic and tail)
• Landing gear
• Hardware and linkages

Additional Items You'll Need:

• Radio transmitter: 6+ channel (Futaba, Spektrum, FrSky compatible)
• LiPo batteries: 6S 5000-6000mAh recommended
• LiPo charger: Balance charger with 6S capability
• Tools: Hex drivers, screwdrivers, pliers, hobby knife
• Thread lock: Blue Loctite for securing screws
• CA glue: For minor repairs and reinforcement
• LiPo safety bag: For charging and storage

Recommended Optional Accessories

• Spare main rotor blades
• Extra batteries (2-3 total for extended flying sessions)
• Portable field charging solution
• Rotor balancer for smooth operation
• Pitch gauge for precise setup

Step-by-Step Assembly Guide

Step 1: Prepare Your Workspace

Set up a clean, well-lit workspace with plenty of room. Lay out all components and organize small parts in containers to avoid losing anything during assembly.

Pro Tip: Take photos as you unpack to reference later if needed.

Step 2: Install the Main Rotor Head

The Bell 412 features a flybarless rotor head system controlled by the GPS flight controller:

1. Attach the main rotor head to the main shaft
2. Install the swashplate and connect linkages to cyclic servos
3. Ensure all ball links snap securely into place
4. Apply blue thread lock to critical fasteners
5. Verify smooth movement without binding

Important: Do not overtighten screws on the rotor head—follow torque specifications in the manual.

[Image suggestion: Close-up of Bell 412 rotor head assembly with labeled parts]

Step 3: Mount the Main Rotor Blades

The Bell 412 uses scale-style main rotor blades:

1. Attach blade grips to the rotor head
2. Slide blades into grips and secure with blade bolts
3. Ensure blades are balanced (use a rotor balancer if available)
4. Set blade tracking for even rotation
5. Double-check all fasteners are tight

Safety Note: Always treat rotor blades with respect—they can cause serious injury when spinning.

Step 4: Install Tail Rotor Assembly

1. Mount the tail rotor gearbox to the tail boom
2. Install tail rotor blades
3. Connect tail servo linkage
4. Verify smooth tail rotor movement
5. Check for any play or binding

Step 5: Mount Electronics and GPS Module

The GPS flight controller is what makes the Bell 412 beginner-friendly:

1. Flight controller: Mount securely in the electronics bay, ensuring it's level
2. GPS module: Position on top of the fuselage with clear sky view
3. ESC: Install with adequate cooling airflow
4. Receiver: Mount away from motor and ESC to minimize interference
5. Servos: Connect to flight controller following wiring diagram

Critical: The GPS module must have an unobstructed view of the sky for proper satellite lock.

[Image suggestion: Electronics bay layout showing proper component placement]

Step 6: Battery Installation and Balance

1. Install battery tray or velcro straps
2. Position battery to achieve proper center of gravity (CG)
3. CG should be approximately at the main shaft centerline
4. Secure battery firmly—it should not move during flight
5. Verify helicopter balances level when lifted at CG point

Step 7: Attach the Fuselage

1. Carefully slide the Bell 412 scale fuselage over the frame
2. Align mounting points
3. Secure with provided screws (don't overtighten plastic)
4. Ensure no wires are pinched
5. Attach canopy or access panels

Radio Setup and Programming

Basic Transmitter Configuration

Setting up your radio correctly is crucial for safe RC helicopter operation:

Channel Assignment (Standard CCPM Setup):

• Channel 1: Aileron (roll)
• Channel 2: Elevator (pitch)
• Channel 3: Throttle/Collective
• Channel 4: Rudder (yaw)
• Channel 5: Flight mode (GPS/Manual)
• Channel 6: Gyro gain/auxiliary functions

Flight Controller Setup

The ACE flight controller requires initial configuration:

1. Connect to computer: Use USB cable and configuration software
2. Calibrate accelerometer: Place helicopter on level surface
3. Set servo directions: Verify correct swashplate movement
4. Adjust servo endpoints: Ensure full range without binding
5. Configure flight modes: Set GPS-assisted and manual modes
6. Set failsafe: Program throttle cut if signal is lost

Beginner Recommendation: Start with maximum GPS assistance and gradually reduce it as your skills improve.

[Image suggestion: Screenshot of flight controller software interface]

Pre-Flight Checks: The Essential Safety Routine

Never skip pre-flight checks—they prevent crashes and ensure safe operation:

Visual Inspection

• ✓ All screws and fasteners tight
• ✓ No cracks in rotor blades or frame
• ✓ Linkages secure with no excessive play
• ✓ Fuselage properly attached
• ✓ Battery secure and fully charged
• ✓ GPS module clean and unobstructed

Control Check

• ✓ Transmitter fully charged
• ✓ Correct model selected on transmitter
• ✓ All controls move in correct directions
• ✓ Swashplate moves smoothly without binding
• ✓ Tail rotor responds correctly to rudder input
• ✓ Throttle hold/idle-up functions work properly

GPS System Check

• ✓ GPS module has satellite lock (usually 6+ satellites)
• ✓ Flight controller LED indicates ready status
• ✓ Home point set at takeoff location
• ✓ GPS mode activates correctly from transmitter

Your First Flight: Step-by-Step

Choosing the Right Location

For your first flight with the Bell 412, select:

• Open space: At least 100 feet clear in all directions
• Flat ground: Short grass or paved surface
• Low wind: Under 5 mph for first flights
• No obstacles: Away from trees, buildings, power lines
• Legal area: Check local RC flying regulations

First Hover Attempt

Step 1: Power Up Sequence

1. Turn on transmitter first (always!)
2. Connect flight battery to helicopter
3. Wait for GPS lock (LED indicator)
4. Verify all systems responding
5. Activate GPS-assisted mode

Step 2: Spooling Up

1. Stand behind the helicopter (never in rotor plane)
2. Slowly increase throttle to 50%
3. Observe rotor behavior—should be smooth
4. Check for vibrations or unusual sounds
5. If everything looks good, continue to step 3

Step 3: Liftoff

1. Gradually increase collective/throttle
2. Helicopter should lift smoothly with GPS assistance
3. Aim for 3-5 feet altitude initially
4. Make small, gentle control inputs
5. Focus on maintaining stable hover

[Image suggestion: Bell 412 in stable hover at low altitude]

Step 4: First Hover Practice

• Hold steady hover for 30 seconds
• Practice small forward/backward movements
• Try gentle left/right slides
• Rotate slowly using rudder
• Keep movements small and controlled

Step 5: Landing

1. Position helicopter over landing spot
2. Reduce collective/throttle gradually
3. Let GPS assist with descent
4. Touch down gently
5. Reduce throttle to idle, then cut motor

Common First-Flight Mistakes to Avoid

❌ Flying in high winds: Wait for calm conditions
❌ Overcontrolling: GPS does most of the work—relax!
❌ Flying too high initially: Stay low until comfortable
❌ Ignoring battery voltage: Land with 20% capacity remaining
❌ Flying without GPS lock: Always wait for satellite acquisition
❌ Panicking during drift: GPS will correct—give it time

Understanding GPS Flight Modes

GPS-Assisted Mode (Beginner)

Perfect for learning, this mode provides:

• Position hold: Helicopter stays in place automatically
• Altitude lock: Maintains height without constant input
• Self-leveling: Returns to level when sticks centered
• Return-to-home: Automatically returns if signal lost

Intermediate Mode

Reduced GPS assistance for skill development:

• Partial position hold
• Manual altitude control
• Self-leveling retained
• More responsive to inputs

Manual Mode (Advanced)

Full manual control for experienced pilots:

• No GPS assistance
• Complete pilot control
• Aerobatic capability unlocked
• Requires developed skills

Progression Tip: Spend at least 10-15 flights in GPS mode before attempting intermediate mode.

Maintenance and Care

After Every Flight

• Inspect rotor blades for damage
• Check all screws remain tight
• Clean dirt and debris from helicopter
• Wipe down fuselage
• Store batteries at storage voltage (3.8V per cell)

Weekly Maintenance

• Lubricate moving parts (tail slider, main shaft)
• Check servo operation and centering
• Inspect wiring for wear or damage
• Verify GPS module secure and clean
• Test battery health with charger

Monthly Deep Inspection

• Remove fuselage for full inspection
• Check frame for cracks or stress
• Inspect main gear and pinion
• Clean and re-grease main shaft bearings
• Update flight controller firmware if available

Troubleshooting Common Issues

Problem: Helicopter Won't Lift Off

Solutions:

• Check battery voltage (should be 4.2V per cell when full)
• Verify collective pitch range (should be 0° to +12°)
• Ensure motor spinning correct direction
• Check for binding in swashplate or rotor head

Problem: Excessive Vibration

Solutions:

• Balance main rotor blades
• Check blade tracking
• Tighten all rotor head screws
• Inspect for damaged blades
• Verify motor mount secure

Problem: GPS Not Locking

Solutions:

• Ensure GPS module has clear sky view
• Wait longer (can take 2-5 minutes initially)
• Check GPS antenna connection
• Move away from metal structures or power lines
• Update GPS firmware

Problem: Helicopter Drifts in GPS Mode

Solutions:

• Recalibrate compass away from metal
• Verify flight controller mounted level
• Check for magnetic interference
• Ensure adequate satellite count (6+ recommended)

Building Your Skills: 30-Day Progress Plan

Week 1: Hover Mastery

• Days 1-3: Stable hover at 5 feet altitude
• Days 4-5: Hover with nose pointing different directions
• Days 6-7: Small position adjustments (forward/back/side)

Week 2: Basic Movement

• Days 8-10: Forward flight and return
• Days 11-12: Figure-8 patterns
• Days 13-14: Controlled circuits around field

Week 3: Precision Control

• Days 15-17: Nose-in hover
• Days 18-19: Landing on specific spots
• Days 20-21: Slow pirouettes while hovering

Week 4: Advanced Preparation

• Days 22-24: Reduce GPS assistance to intermediate mode
• Days 25-27: Practice emergency procedures
• Days 28-30: Evaluate readiness for manual mode

Safety Guidelines: Always Remember

The Bell 412 is a large, powerful RC helicopter. Follow these safety rules:

• 🔴 Never fly near people or animals
• 🔴 Always maintain visual line of sight
• 🔴 Respect local flying regulations and restrictions
• 🔴 Never fly over roads, buildings, or crowds
• 🔴 Check weather conditions before every flight
• 🔴 Keep fingers away from spinning rotors
• 🔴 Use LiPo safety practices (charging, storage, disposal)
• 🔴 Have a spotter for first flights
• 🔴 Join a local RC club for guidance and safe flying areas

Join the Bell 412 Community

You're not alone on this journey! Connect with other Bell 412 pilots:

• Share flight videos and experiences
• Get setup and tuning advice
• Learn advanced techniques from experienced pilots
• Discover upgrade and modification options
• Find local flying buddies

Ready to Take Flight?

The Flywing Bell 412 RC helicopter offers an incredible entry point into large-scale RC helicopter flying. With GPS assistance, quality construction, and this comprehensive guide, you have everything needed for success.

Remember: every expert pilot started exactly where you are now. Take your time, follow the steps, prioritize safety, and enjoy the journey of mastering this amazing aircraft.

Your Bell 412 adventure starts here!

GET YOUR BELL 412 TODAY →

Shop Accessories & Upgrades | Contact Support Team

---

Need Help? Our expert support team is here to assist with setup, troubleshooting, and flying tips. Don't hesitate to reach out—we want you to succeed!
